Single axle truck (2000 US Gallon)
«SLIDE-IN» TYPE COMPARTMENT
Aluminum compartment built to suit, allowing you the storage of your folding frame tank from both sides, one (1) compartment on each side including a sliding wall for tools or ajustable shelf and one (1) top compartment for extra storage or to be modify to a hose bed.
«SLIDE-IN» TYPE COMPARTMENT FOR FOLDING FRAME TANK
Four (4) folding frame tank model are available;
- 2100 GALLONS (USG)
- 2500 GALLONS (USG)
- 3000 GALLONS (USG)
- 3500 GALLONS (USG)
«ZIAMATIC HYDRAULIC QUICK-LIFT SYSTEM» FOR FOLDING FRAME TANK
Installed on the passenger side of the vehicle, this hydraulic system will allow the storage of your folding frame tank by minimizing the efforts. Three (3) different casing options are available:
- Aluminum type «diamond plate»
- Polished aluminum
- Peinted same color as the cab
«ROL-LA-TANK» PORTABLE CONTAINER
By choosing this option, you will automatically decrease the lenght of the vehicle by a minimum of 2 feets. Stored inside the passenger side compartment, this portable tank will decrease the cost and have many advantages whose:
- Can be carried by only person
- Quick assembly
- Portable container that can be installed by only one person in less than 2 minutes.
- Can be used on a non-flat surface
Four (4) rol-la-tank model are available:
- 1500 GALLONS (USG)
- 2000 GALLONS (USG)
- 2500 GALLONS (USG)
- 3000 GALLONS (USG)
The pump compartment is located on the driver side of the vehicle. Including the next equipment.
60″ LENGTH 38″ HEIGHT, 28″ DEPTH
- One (1) 4” inches pre-connect with «storz» adapters & drain – inlet/outlet with butterfly valve
- One (1) 500 lbs capacity sliding-tray – built to suit according to the portable pump
- One (1) prestone 21,000 btu heating system
- Three (3) led lighting tube
- Two (2) 120v electrical outlet
- One (1) iota dls-30 amps battery charger
- One (1) intelligent battery charger for portable pump
- Electrical panel
C.E.T. PORTABLE CENTRIFUGAL PUMP MODEL «PFP-38HP-KHL-2D»
This high pressure / high volume pump is made to fight fire or supply water to the fire scene.
Portable fire pump built and custom modify by c.E.T., including the next options:
- Ch1000 kohler air cooled engine.
- 2-cylinder, 4-stroke gasoline engine
- 12v electric start
- 6 gallon (22 l) detachable fuel tank
- Engine start/stop button
- Throttle control lever
- Choke control lever
- Oil control lamp
- Operating panel light
- Pressure gauge
- Vacuum pressure gauge
ONE (1) QUICK-CONNECT FITTING BUILT TO SUIT IS PROVIDED IN ORDER TO CONNECT THE PORTABLE PUMP TO THE TANK QUICKLY.
C.E.T. PORTABLE PUMP PERFORMANCES GRAPHIC «PFP-38HP-KHL-2D»
GORMAN RUPP P.T.O. PUMP MODEL «03h1»
GORMAN RUPP P.T.O. PUMP MODEL «04E1»
GORMAN RUPP P.T.O. PUMP CONTROL PANEL
One (1) custom control panel including the following options:
- 2,5” inches valve(s)
- Hale primer
- Parker p.T.O. Control box
- Rpm increase/decrease switch
- Pression gauge(s)
HALE SIDEKICK P.T.O. PUMP
The dimensions of the hale sidekick pump allow the installation of the complete module inside the driver side compartment and the heating system while keeping all away from the weather.
Two (2) pump model are currently offered:
- SIDEKICK APS 500 GPM (USG)
- SIDEKICK MBP 750 GPM (USG)
PASSENGER SIDE COMPARTMENT – HOSE REEL
The passenger side compartment is usually equipped with a full size adjustable shelf if no hose reel is installed. This compartment will be customized according to your needs. Many hose reel brands are available whose:
- HANNAY REELS
Two (2) types of hose reel are available:
CUSTOM FRONT BUMPER
One (1) front bumper built to suit according to your needs.
- Front bumper compartment for additional storage
- Hose bed
- Manual or electric monitor

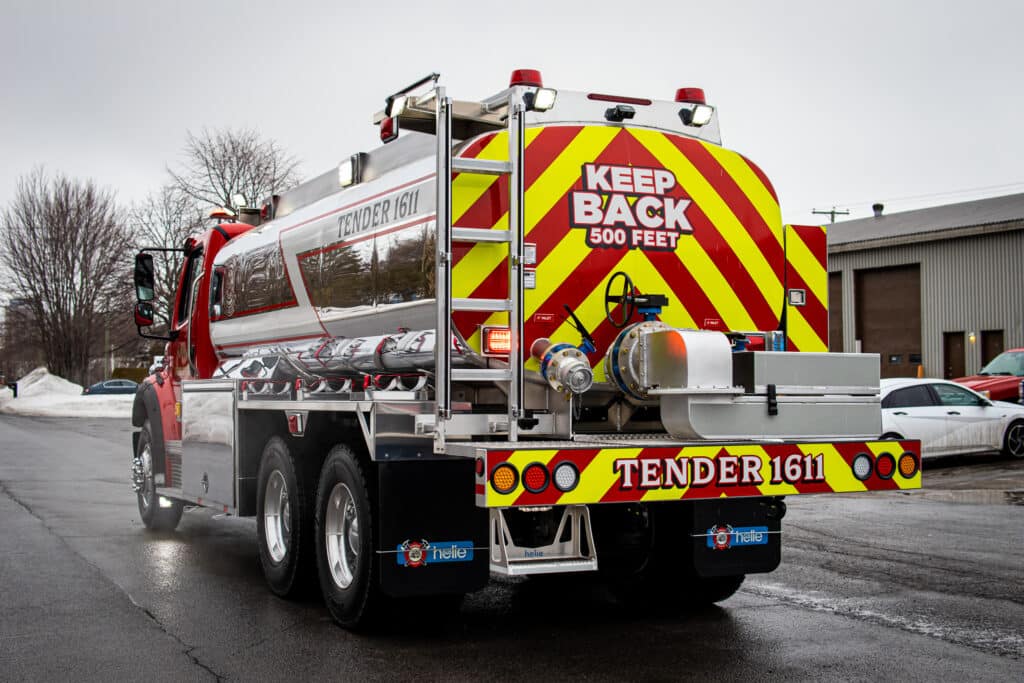

REAR PIPING PACKAGE
The rear piping package includes the following equipment:
- Two (2) 4” inches rear inlets with storz fittings and butterfly valves
- One (1) 10” inches quick dump with manual valve
- One (1) 26” inches straight aluminum extension stored below the 10” inches quick dump
- One (1) 90 degrees aluminum elbow for side dump stored below the chassis on the driver side
«AUTOMATIC DISCHARGE SYSTEM»
One (1) air activated automatic discharge systrem which open and close the 10” inches quick dump and that can be activated with a switch from the inside of the cab or at the rear of the vehicle.
«NEWTON SWIVEL DUMP»
The stainless steel swivel discharge system called ”newton swivel dump chute” is built for fast and efficient use. The newton swivel dump chute can be extentionnated because of the three (3) additional telescopic sections.
«HEIMAN SWIVEL DUMP»
Made by heiman co, their aluminum swivel chute will be able to meet your needs at low cost.
ADDITIONAL REAR COMPARTMENTS
Two (2) additional rear compartments can be added with a choice of a sliding-tray or adjustable shelf. The front opening door is preferable in order to keep the maximum storage space.
One (1) aluminum ladder rack built to suit installed on top of the tank body for the storage of one (1) of many ladders. The rear support bracket make it easier to use and protect the back-up camera.
One (1) custom aluminum with storage and electrical power installed between the seats of the cab.
«ONSPOT TIRE CHAINS SYSTEM»
The onspot system is basically a simple and very reliable concept. It is a wheel fitted with several chains that is lowered and held towards the driving wheels. When the chain wheel rotates the chains are placed under the driving wheels to increase traction.
Onspot is engaged only when needed – up to 35mph (50km/h) without having to stop the vehicle. It works whether you are accelerating, braking or in a loss of traction situation. When engaged traction is obtained in forward or reverse.
Onspot is conveniently engaged and disengaged by flipping a switch on the dashboard. It is a trouble-free and ever-present solution for avoiding delays due to slippery road conditions.
EMERGENCY LIGHTING PACKAGE CONFORM TO UL & NFPA STANDARDS.
- One (1) whelen nfpa super led justice light bar 62’’
- Two (2) whelen l31hfrn super led strobes
- Two (2) whelen super led scene lights series 900
- One (1) tecniq perimeter light
- Twelve (12) whelen super led interception lights series 600
- Eleven (11) led work lights
- Full led lighting in tank compartments
- One (1) whelen electronic console
- One (1) witness light for compartments door open
- One (1) rear view back up camera cab-cam 7’’ color / sound
- One (1) whelen electronic siren / speaker / pa
- One (1) master switch
- One (1) wig-wag system
- One (1) whelen sapphire control head
- One (1) whelen hhs3200 module
